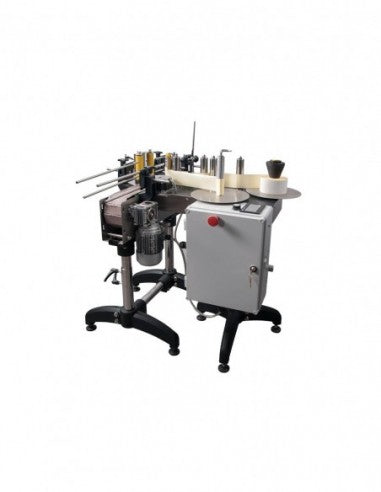

Lyson Labeling Module for Automatic Bottling Line

$0.00
  • Lyson Labeling Module for Automatic Bottling Line

Lyson Labeling Module for Automatic Bottling Line

$0.00

Special Order Item - Please contact for quote.

An optional module for the Lyson automatic honey dispensing line, installed as an extension of the conveyor belt linking both turn tables. Another step towards the full automatic honey bottling process.

Automatic labeling machine is designated for automatic application of self-adhesive labels, significantly simplifying work process with labeling of filled jars. Device was designed to work with jars of capacity from 250 to 1250 g. Labeller is equipped with modern microprocessor controller, photoelectric sensor, responsible for positioning of jars and optical sensor, responsible for positioning of labels. Labeling efficiency depends on dispenser speed.

Technical data:

• supported labels: self-adhesive

• maximum label height: 120 mm

• external roll diameter: 240 mm

• inner roll diameter: 40-76 mm

• work pressure: 2-4 bar

• label guides: stainless with aluminium-polyurethane bearings

• power: 230V/50Hz

• device dimensions: length: 750 mm, width: 900 mm, height: 950 mm

Main characteristics:

• adjustable speed conveyor belt

• side guides for transportation of jars with adjustable spacing

• label dispenser driven by step motor

• pneumatic jars separator

• compatible with jars within the size range between 250 g and 1250 g
