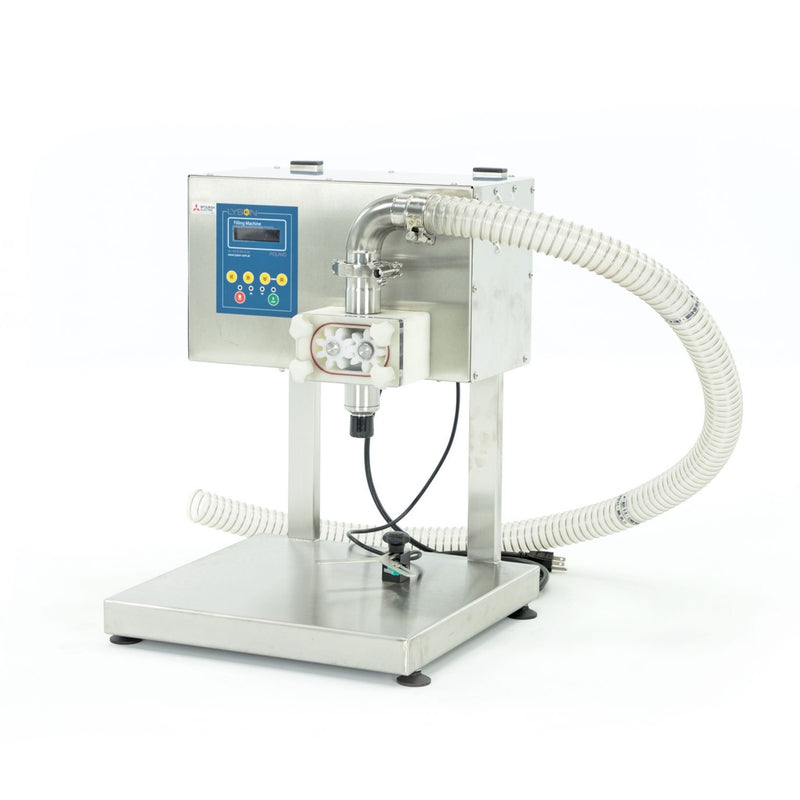

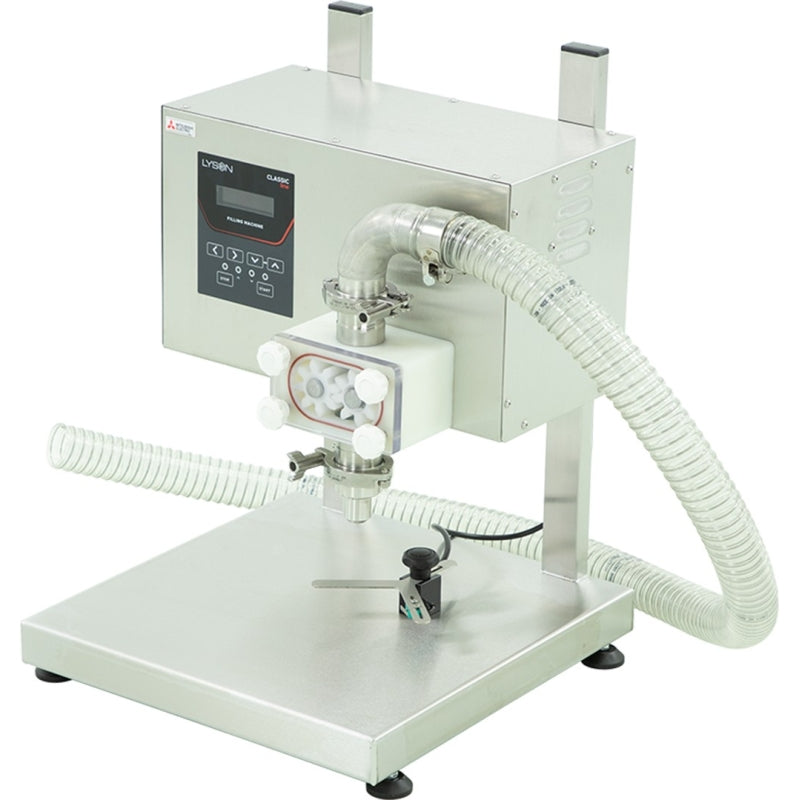

Lyson Honey Filling Machine

This an innovative, multi purpose piece of equipment.

1. Honey Creaming
2. Honey Pump
3. Honey Dosing

It's main function of the device is to cream honey.  The process takes place by pumping the  raw material,  e.g. from one container to another, or in a system with one container. It is a "mechanical grinding" of honey crystals through the gear module used in this device. This device, thanks to the continuous pumping of honey for several days, allows you to achieve the right consistency. Honey subjected to this process, when stored at a constant temperature, retains its loose consistency for many months. The length of the creaming process depends on the type of honey, the ambient temperature, and the water content in the honey.


 Technical data: self-priming, slow-running pump with a gear module



• Computer controlled device

• Fills about 400 jars of 500 g / hour  (depending on the type and density of the honey)

• Filling accuracy: up to 1,200 g +/- 1%, over 1,200 g +/- 1.5%

• Filling range from 50 g to 55 kg

• Also usable as a pump

• All parts that the honey comes into contact with are made of stainless steel or food-safe material.

• Power supply 110V / 180 W

• Dimensions 400 × 410 × 570 mm

• Automatic program, honey pumping mode
• Pump down option

Includes:

• Footswitch
• limit switch
• hose connection
• connector for connecting the hose to the device
• clamp band
• 1.5 m of hose

The photos of products are only demonstrative and may be different than the real look of the products. However, this does not change their basic properties.

English Manual can be found here
