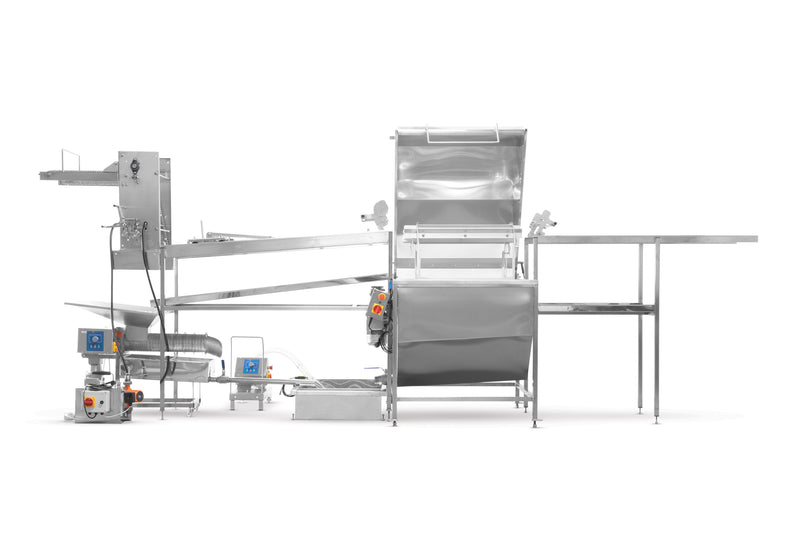

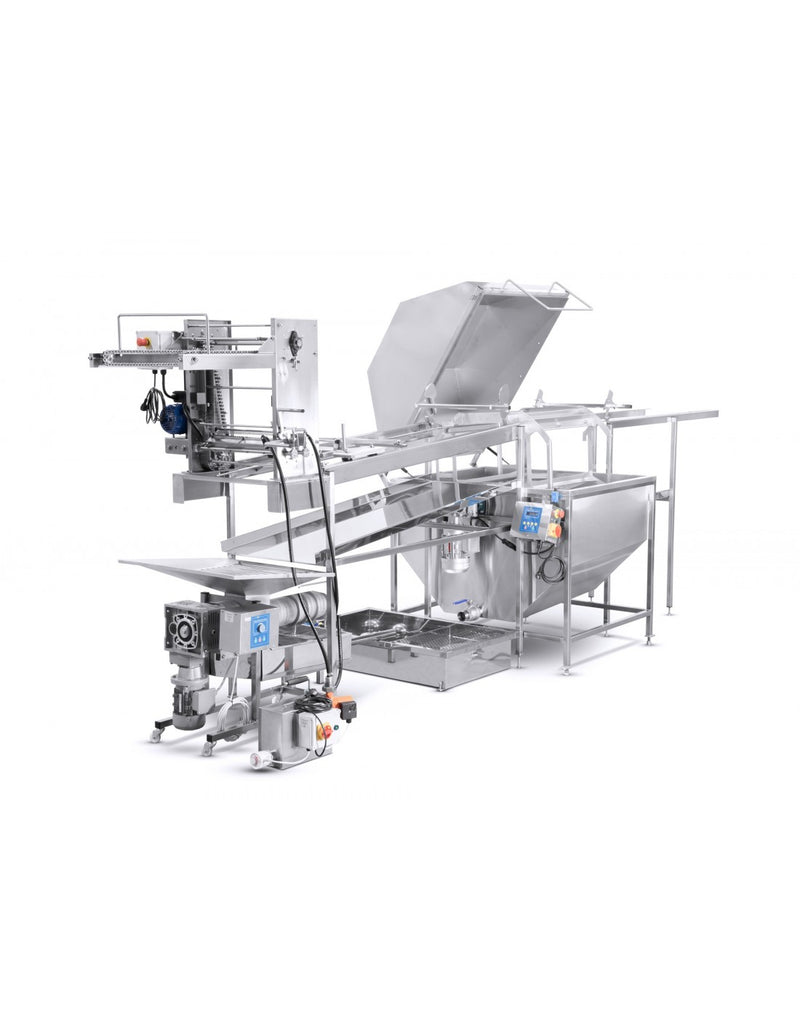

Lyson Complete Mini Extracting Line - Minima
Horizontal honey extractor:
- for 40 frames (two sections)
- 0.75 kW engine
- 230V power supply
- 2 "ball drain valve
- honey extractor, length 1370 / width 1150 / height 1450 mm
Mechanical uncapper with chain feeder:
- capacity 4-6 frames / min.
- knives heated with hot water in a closed circuit
- hot water generator with a capacity of 8.5 L.
- power: 2.1 kW
- 230V power supply
- uncapper dimensions: length 2600 / width 1000 / height 1900 mm
Frame feeder with manual loading trolley:
- length: 1500 mm
Frame receiver:
- single, length: 1500 mm
- dimensions: length 1600 / width 700 / height 1500 mm
Cappings extruder:
- capacity up to 100 kg / h
- adjustable engine speed: max 9 rpm
- power 0.55 kW
- 230V power supply
Honey pump:
- capacity: 900l/hr
- power: 0.37 kW
- power supply: 230V
- dimensions: length 700 / width 400 / height 650 mm
Sump (unheated):
- capacity 120 l
Dimensions of other components:
- press length 1100 / width 750 / height 850 mm
- sieve length 1150 / width 800 / height 300 mm
Total line dimensions:
- length 5000 mm
- width 1700 mm
- height 1900 mm
Line weight:
- total net 419 kg
- 80 kg net press
- net pump 25 kg
- sieve + net float 14 kg
- honey extractor + feeder + receiver + net uncapper 300 kg
This unit ships from Calgary Alberta. Freight, Crating and Insurance can be arranged by buyer or a quote requested.
