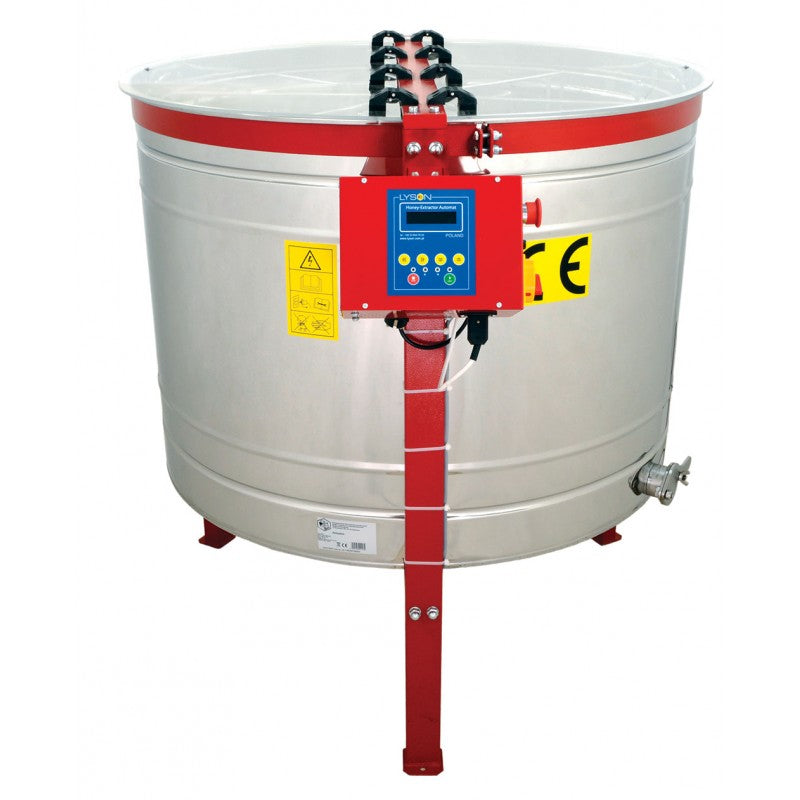

56 Frame Lyson Classic Honey Extractor
56 Frame radial honey extractor, 1200mm, electric drive, CLASSIC Line. Automatic controller.
The drum is made of acid-resistant stainless steel and is reinforced to reduce movement during use.
Basket entirely made of stainless steel rods. Basket rims are equipped with appropriately contoured fastenings to prevent the frames from falling out during the spin. The basket is additionally mounted in two mounts: top and bottom.
Transparent covers made of metaplex, giving the opportunity to observe the process of spinning without the need to open them and expose yourself to the danger of contact with the rotating basket.
Automatic controller has eight programs. The first two programs are designed to work in manual mode, the third program - automatic, has factory settings. Programs from 4 to 8 (automatic) allow you to enter your own settings. Each program consists of 7 steps. At each step, you can set three parameters - step start time, set speed and direction of rotation. The seventh, last step defines the time of stopping the basket of honey extractor.
Ships freight only.
Specifications
| product line | CLASSIC |
| Type of extractor | radial |
| Drum diameter[mm] | Ø1200 |
| Drive system | Electric bottom |
| Power supply | 110V |
| Controller | HE-02 |
| Motor | 0.75kW DC |
| Sheet thickness | 0.6 mm |
| Cover | 5 mm |
| Honey gate (2) | Stainless 2" |
| Top bar | Flat bar 60×10 mm, powder coated |
| Legs | Powder coated 60x40 mm |
| Hinges | Plastic x 8 |
| Drum height | 680 mm |
| Drum rim | Powder coated |
| Reinforcing frame | Powder coated |
| Basket | Stainless rod Ø10 and Ø8 |
| Other | Shipped on pallet |
| Warranty | 5 years* |
| * Warranty | for electrical components, controller, motor and drive elements - 2 years |
