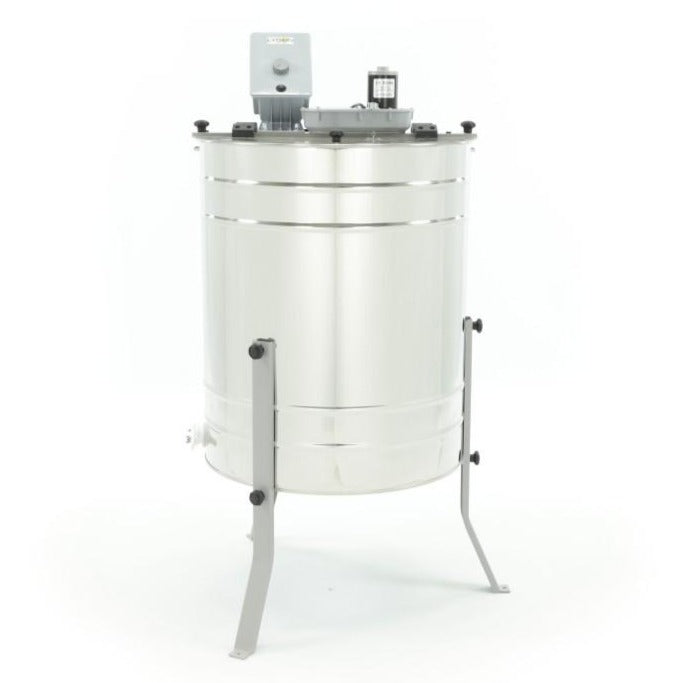

This 4 cassette honey extractor is ideal for hobbyist beekeepers that appreciate the speed and efficiency of a tangential style extractor, but don't want to manually remove and flip the frames. The basket of the honey extractor consists of 4 cassettes (cages) that allow the frames to be manually rotated without lifting, turning and replacing the frames. Can be used with deep or medium frames.
MINIMA LINE honey extractor details:
4 cassette honey extractor made of acid-resistant stainless steel. Manual drive and manually reversed cassettes.
Drum made of acid-proof stainless steel 0H18N9, conical bottom.

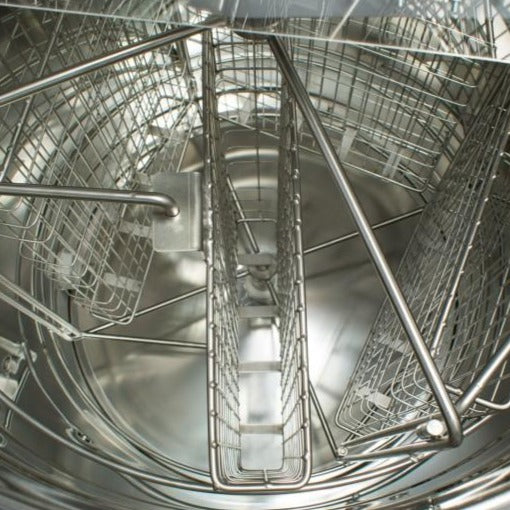

Basket made of acid-resistant rods equipped with 4 cassettes. The cassette is attached to the basket with a hinge. During the extraction, stop the honey extractor and manually flip the cassettes to the other side.
Manual drive mechanism made of black steel and powder coated. Steel gears transfer torque to the basket axis.
Transparent cover made of metaplex protects the user against the danger of contact with the rotating basket as well as keeping dirt out of the extractor.
Information about the device.
- Frame type - up to 4 deeps
- Electric drive - 110V
- Controller - MDD-01 Minima
- Motor -120W
- Drum / bottom sheet thickness - 0.6 / 0.6 mm
- Valve - plastic 6/4 "
- Upper beam - flat 625x65x10 mm mal. powder
- Plexiglass - 3mm
- Legs - short powder coated
- Hinges - plastic 4 pcs
- Cassette mesh size - 20x40 mm
- Drum height - 735 mm
- Drum diameter - 600 mm
- Weight - 31 kg
- Product dimensions (with legs attached): length 780, width 620, height 1175 mm
- Packed in a carton, minimal assembly required.
- Dimensions of the packaging: length 640, width 640, height 820 mm
