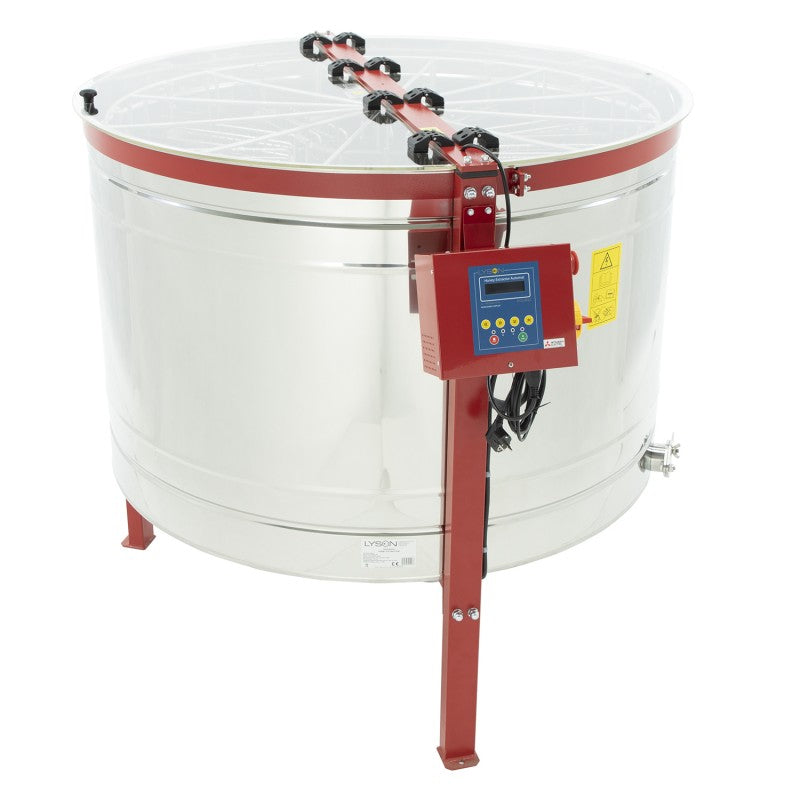

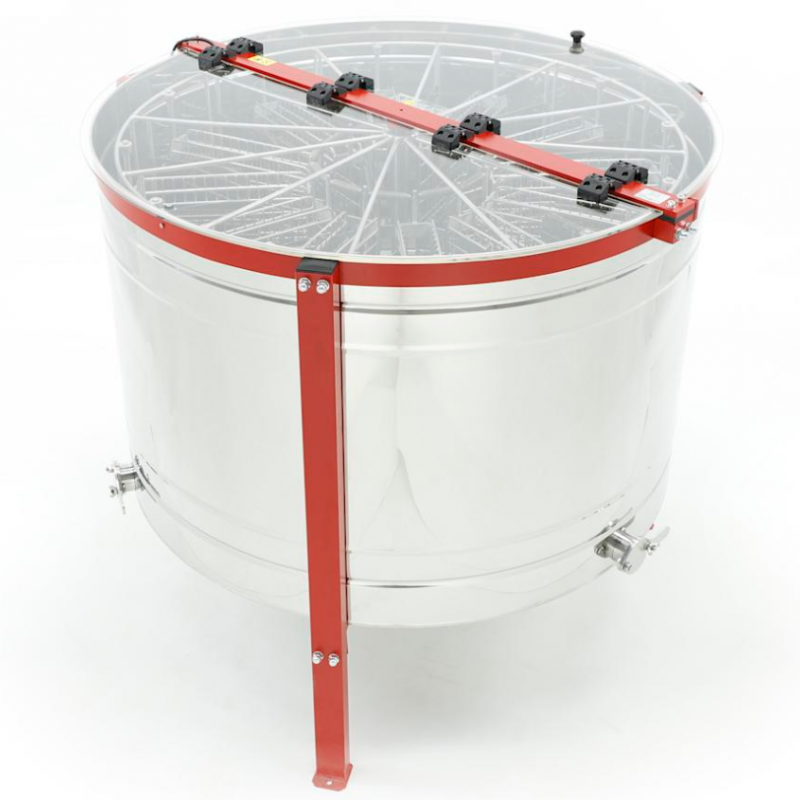

12-cassette LANGSTROTH honey extractor, Ø1200mm, electric drive, automatic, CLASSIC
Cassette honey extractors are characterized by a smaller number of cassettes in the basket but higher efficient then radial extractors. This reduces cycle time to approximately 5 minutes (versus approx. 15minutes for a radial) The spinning cycle takes place in two directions, with no need to manually flip the frames.
The drum is made of acid-proof stainless steel, properly reinforced and stiffened, equipped with a trigger.
The legs are powder coated steel.

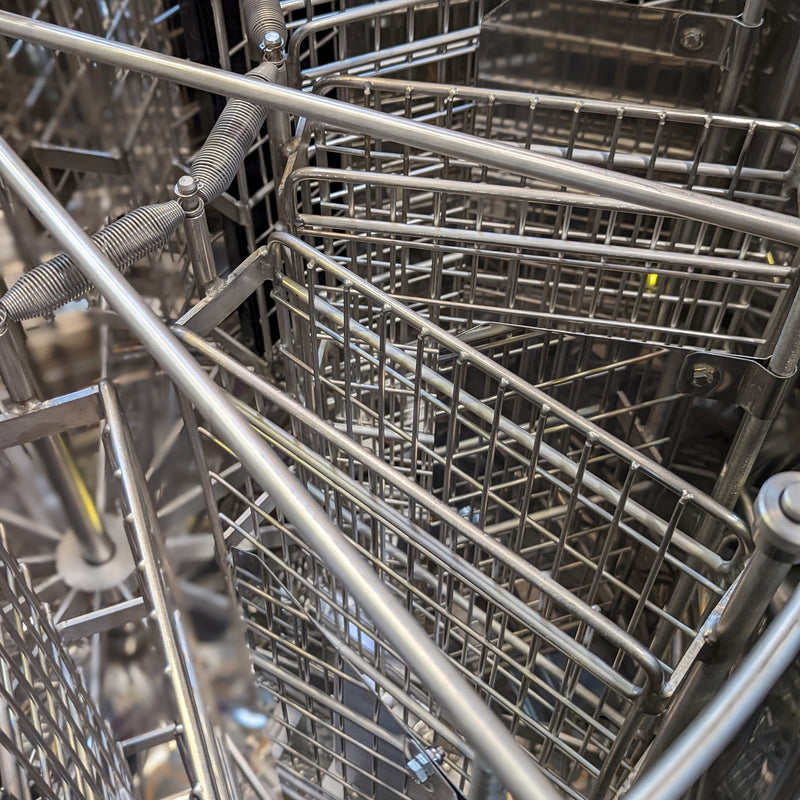

Cassette basket made of stainless steel rods, equipped with cassettes, the construction of which allows the frames to be protected against the breaking of the slices (mesh size: 20x40 mm). The cassettes are connected with each other by means of springs that allow them to return to the starting position. The basket is additionally mounted in two mounts: top and bottom.

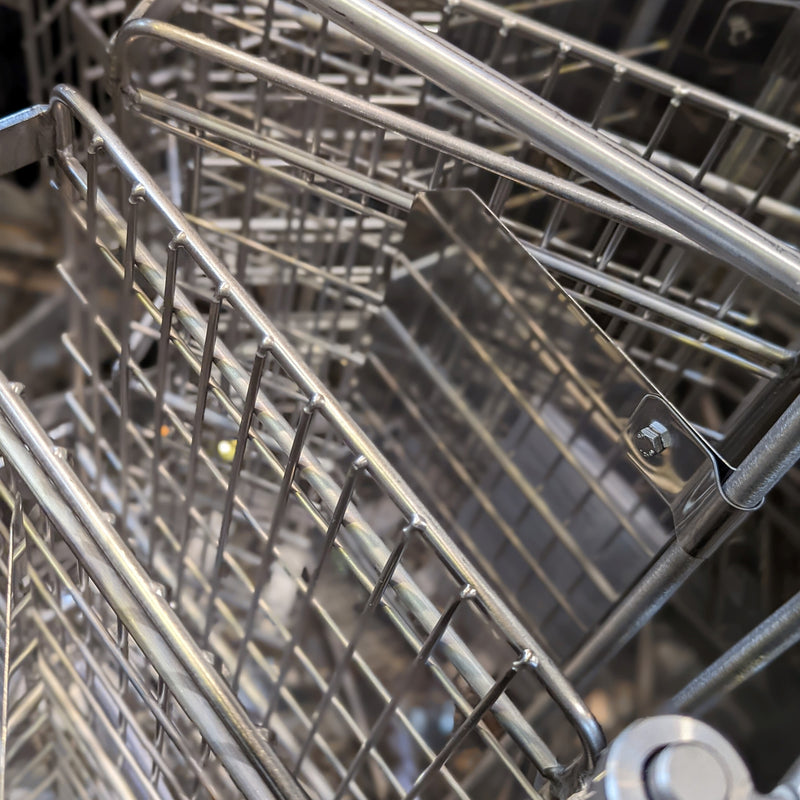

Partitions, by introducing partitions made of stainless sheet metal, we get the opportunity to increase the number of cassettes in the honey extractor. The cassettes overlap in this case on one another, but thanks to the sheet baffles, the honey falling out of the slices during centrifugation does not run into the adjacent frame but runs down the baffles.
Transparent covers made of metaplex, giving the opportunity to observe the spin process without having to open them and expose them to the danger of contact with the rotating basket.
0.75kW engine. Honey extractor is supplied with 110V AC.
The automatic control has eight programs. The first two programs are designed to work in manual mode, the third program - automatic, have factory settings. Programs from 4 to 8 (automatic) allow you to enter your own settings. Each program consists of 7 steps. At each step, you can set three parameters - step start time, set speed and direction of rotation. The seventh, last step defines the time of stopping the basket of honey extractor.
Ships Freight Only
Specifications
Product line | CLASSIC |
Type of extractor | 12-cassette |
Frame type | 12× Langstroth |
Drum diameter[mm] | Ø1000 |
Drive system | Electric bottom |
Power supply | 110V |
Controller | HE-02 |
Motor | 0.75kW (1HP) |
Sheet thickness | 0.6 mm |
Cover | 4 mm |
Honey gate (2) | Stainless 2" |
Top bar | Flat bar 60×10 mm, powder coated |
Legs | Powder coated 60x40 mm |
Hinges | Plastic 8 pcs |
Drum height | 780 mm |
Drum rim | Powder coated |
Reinforcing frame | Powder coated |
Cassette material | Stainless rodØ3 and Ø6 mm |
Other | Basket with partitions. Shipped on pallet |
Warranty | 5 years* |
* Warranty | for electrical components, controller, motor and drive elements - 2 years |
