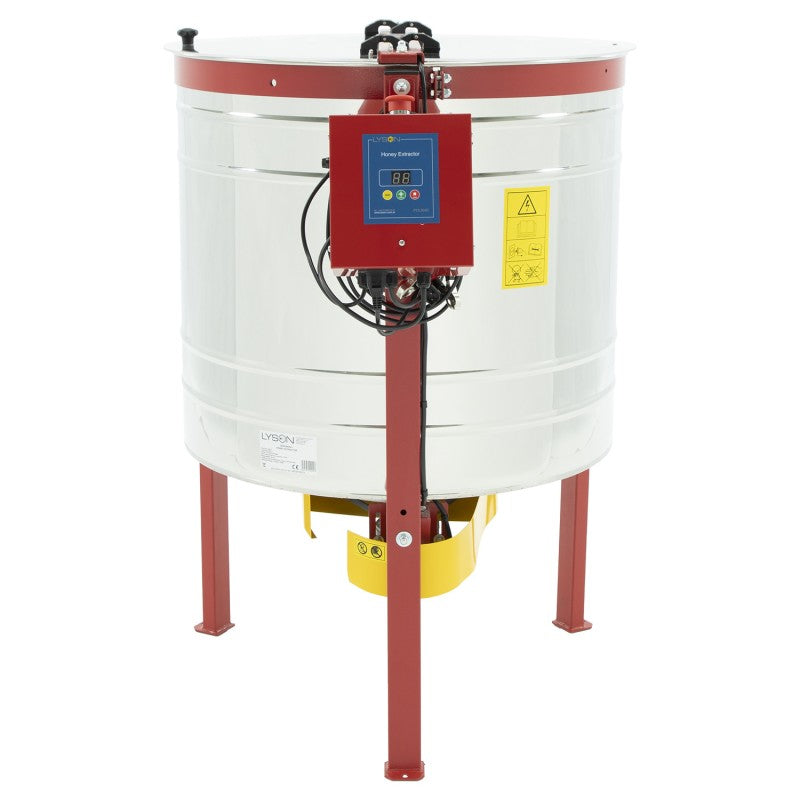

12 Frame Lyson Honey Extractor - Classic Line
An excellent model for the expanding beekeeper! Radial honey extractor with a capacity for 12 deep or medium frames. (note that some medium plastic frames do not fit comfortably in this model)
650mm drum diameter makes this compact extractor suitable for many users with limited space.
Bottom mount belt drive motor adds stability while operating. Dual power controller (12v/110v) adds convenience for field extraction as well as a digital 10 step speed adjustment.
The honey is extracted from both sides of the combs simultaneously, so there is no need to invert the frames and spin them again.
Packed on pallet, ships freight only, please request a quote
Specifications
| Product line | Classic |
| Type of extractor | 12 Radial |
| Frame type | Langstroth (all sizes) |
| Drum diameter[mm] | Ø650mm |
| Drive system | Electric, bottom mount motor |
| Power supply | 110V or 12V |
| Controller | SDD-2DP |
| Motor | Belt Drive 250W |
| Drum Thickness | 0.6 mm |
| Cover | 3 mm Acrylic Glass |
| Honey Gate | 1 x Stainless Steel 1.5" |
| Top bar | Flat Bar 10mm Powder coated |
| Legs | Powder coated |
| Hinges | Plastic 4 pcs |
| Drum height | 610 mm |
| Drum rim | Powder coated |
| Reinforcing frame | Powder coated |

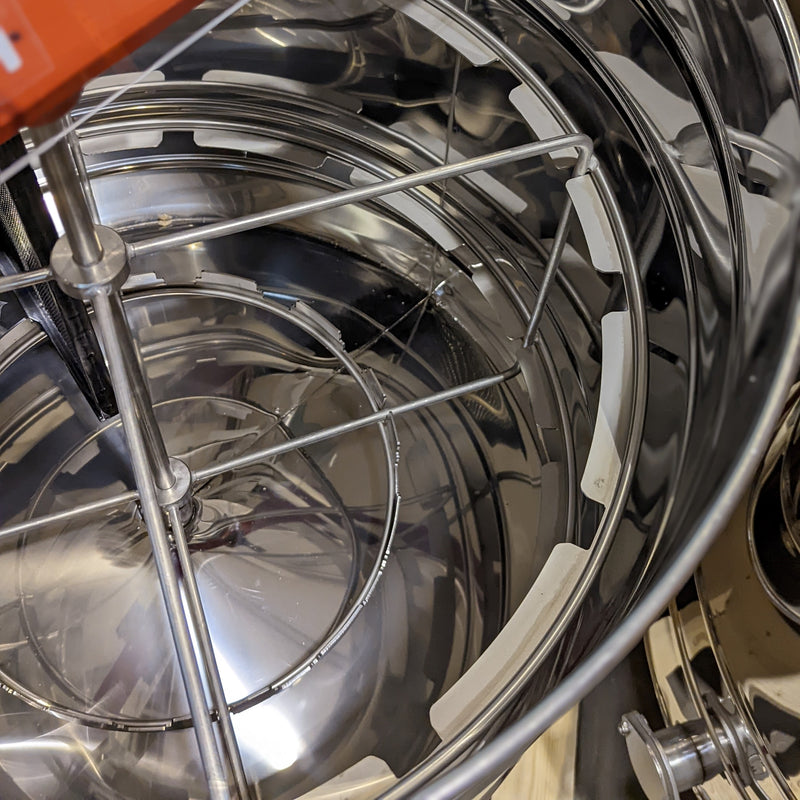

| Basket material | Stainless rod Ø8 mm |
| Other | Shipped on pallet |
| Warranty | 5 years on chassis, 2 years for electrical components, controller, motor and drive elements |
