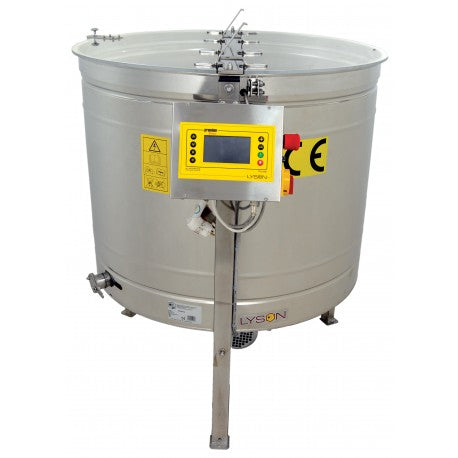

56 Frame Lyson Premium Honey Extractor

Premium Line Honey Extractors are products made of the highest quality materials and components that ensure longer life for products from this line. and why products from the Premium Line line are covered by a seven-year warranty.

Construction

The stand is made of stainless steel. Stable and easy to dismantle.

Drum made of acid-proof stainless steel with a thickness of 0.8mm, appropriately reinforced and stiffened. Bottom in the shape of a cone made of acid-proof stainless steel, 1mm thick.

Transparent covers made of 8mm thick metaplex allowing observation of the spinning process without the need to open them and risk being exposed to the rotating basket.

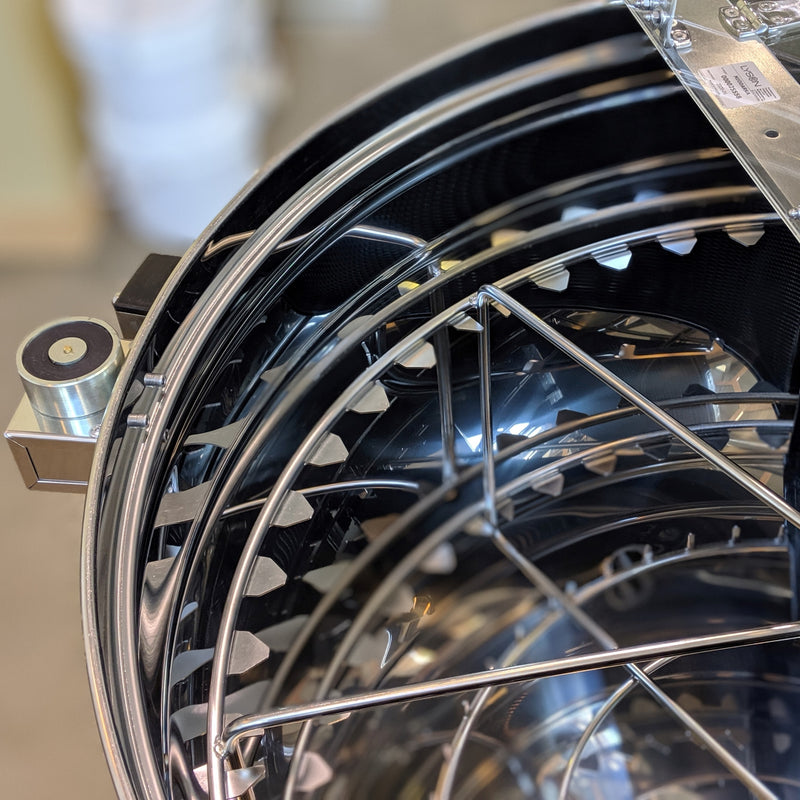

The entire radial basket is made of stainless steel rods. The basket's rims are equipped with laser cut edges to prevent the frames from falling out during the spin. The basket is additionally mounted in two casters - top and bottom.

The Honey Extractors operator consists of a high performance THF eco-line geared gear motor, directly coupled to the axis of the honey extractor basket and the Mitsubishi frequency inverter with active optimization function. This drive allows you to reduce the energy consumption up to 35% while maintaining excellent technical parameters of the honey extractor. The use of the THF series gear unit also increases the service life of the device as well as reduces noise. The honey extractor has a bottom drive to assist in stabilization while spinning.

Engine 0.75 kW Honey extractor is powered by 110V.

The electromagnetic lock is coupled with a honey extractor motor. Turning the engine on causes the electromagnet to be activated, which blocks the lid of the honey extractor when the basket starts. The block release occurs when the basket is stopped. The lock meets the requirements of the CE safety.

Advanced automatic control HE-03 uses the latest developments in the fields of electronics, computer science and process control automation. When designing the controller, the greatest emphasis was put on the ease and intuitive operation and reliability of work. The functionality of the controller was selected to ensure maximum comfort of work with the honey extractor.

Basic functional features of the HE-03 controller:

• 8 fully programmable automatic cycles
• 2 autonomic manual cycles
• large (4.3 ") color TFT graphic display with energy-saving LED backlight and 480x272 pixels
• operation via 8 ergonomically arranged control buttons
• simple and intuitive user interface using high-contrast graphics to ensure excellent visibility in all lighting conditions.
• graphical spin cycle editor - equipped with the auto-correction function of parameters
• 2 independent honey extractor operating time counters
• advanced diagnostic and control functions that monitor the controller's operation parameters and attached equipment on an ongoing basis
• cooperation with a high-class Mitsubishi vector inverter

 Specifications
